Nissan Sentra Key Systems by Generation – What You’re Actually Working With

The biggest mistake people make when calling about Sentra key programming is assuming all Sentras work the same way. They don’t. The key system changed significantly between generations, and even within generations there are differences depending on the trim level and the year of production. Here’s what each platform uses:

2010–2012 Sentra (B16) – Basic Transponder Key

The B16 generation Sentra uses a straightforward transponder key with a Texas Instruments chip in the plastic head. There is no remote function integrated into the key itself on base models – central locking, where equipped, is operated by a separate remote or by the key in the door barrel. The transponder communicates with the immobiliser ECU at a fixed frequency when the key is inserted and turned. Programming requires a CONSULT II-compatible interface to add the new key’s chip code to the ECU’s authorised key list.

Because the B16 system is older and relatively simple, it’s also more tolerant of third-party programming tools – but “more tolerant” doesn’t mean any generic programmer will work. The specific Nissan IMMO protocol still needs to be supported.

2013–2019 Sentra (B17) – Integrated Key Fob and Early Intelligent Key

The B17 is where things get more varied. Lower trims use a key with an integrated remote fob – the transponder chip handles engine start, and the remote buttons on the same unit handle central locking. Higher trims and later B17 models moved to the Nissan Intelligent Key system, which uses passive entry (the car detects the fob nearby) and push-button start.

For the integrated key fob: both the transponder and the remote need to be programmed, and they use different procedures even though they’re part of the same physical unit. The transponder is programmed via CONSULT III; the remote is synced separately via the BCM’s learn mode.

For Intelligent Key-equipped B17 models: programming is more complex. The key fob contains a transponder chip, a UHF remote transmitter, and in some variants a low-frequency passive entry antenna. All three functions need to be paired to the vehicle. This requires CONSULT III Plus or an equivalent tool that can access the BCM’s Intelligent Key registration mode.

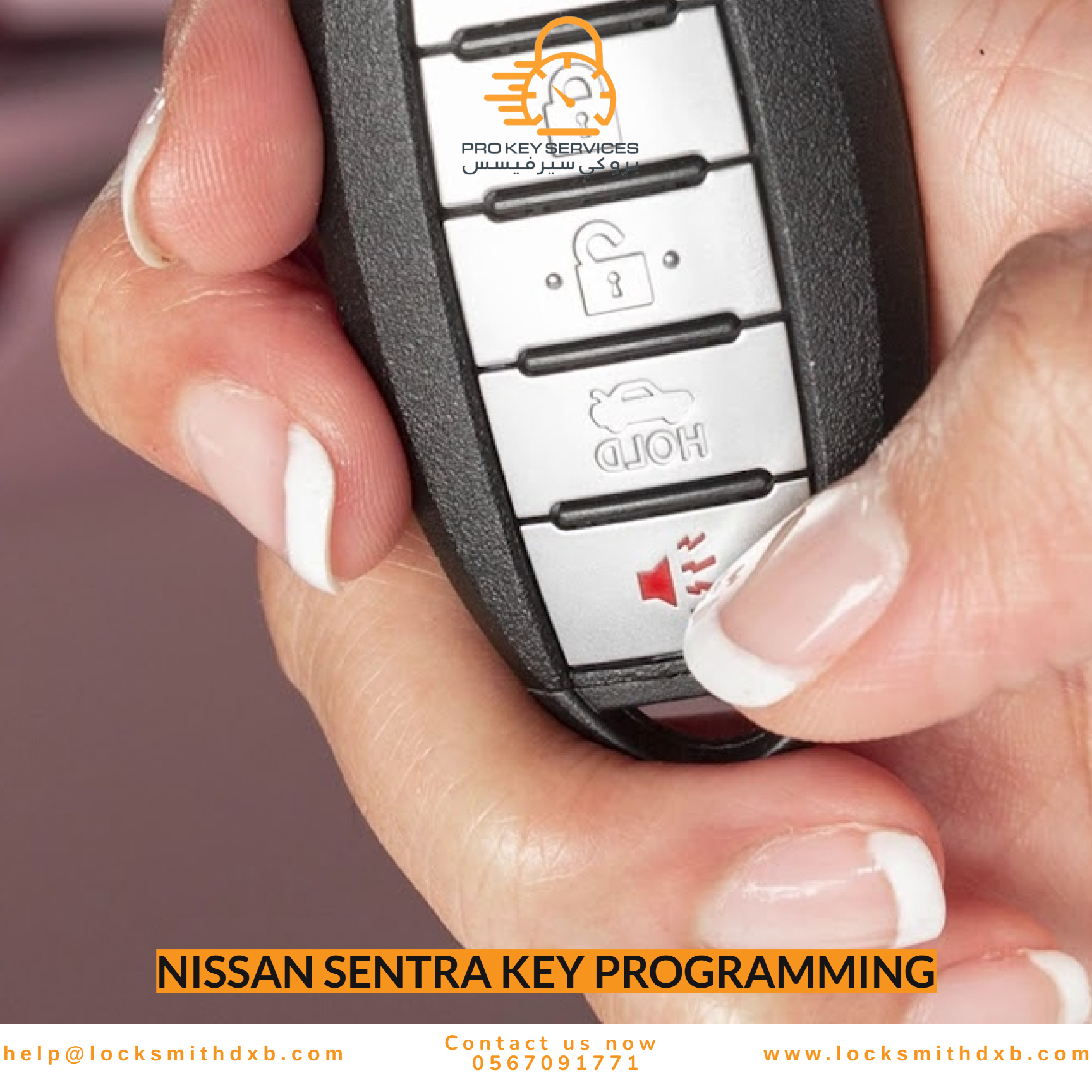

2020–Present Sentra (B18) – Full Intelligent Key System

The current B18 generation Sentra is standard with the Intelligent Key across all UAE trims. The key fob is larger than the B17 unit and communicates with the car via multiple antenna zones – the vehicle detects the fob as you approach the door and unlocks automatically, and push-button start authorises based on fob proximity inside the cabin.

Programming the B18 Intelligent Key requires a CONSULT III Plus interface with current Nissan software. The procedure involves entering the BCM’s key registration mode, which on this generation requires a PIN that is either retrieved from the BCM via EEPROM read or obtained through Nissan’s key registration system. This is one of the reasons dealer programming takes time – they go through official channels for the PIN. We retrieve it directly, which is faster and gets the same result.

The B18 also supports up to four registered Intelligent Keys. If you’re adding a spare, we add it without deleting the existing key. If the original was lost, we delete it from the system and register the replacement as the only authorised key.

Common Nissan Sentra Key Problems in Dubai and What Causes Them

Dubai’s environment and driving patterns create some recurring key issues on the Sentra that we see regularly. Understanding the cause helps you decide whether a simple fix is possible or whether programming is actually needed.

Key Fob Stops Working After Battery Replacement

This is probably the most common call we get for Sentras. Owner replaces the fob battery, the battery is fine, but the remote buttons still don’t work. What’s happened is that the key fob lost synchronisation with the BCM during the battery swap – a brief power interruption can sometimes reset the fob’s rolling code counter, taking it out of sync with the car’s receiver. The fix is a re-sync, not a full reprogramming. On some B17 models this can be done with a door-lock cycling procedure without any tools. On B18 models and out-of-range sync losses, the CONSULT interface is needed.

Transponder Not Recognised – Car Won’t Start

The engine cranks but doesn’t fire, and the immobiliser light stays on or flashes. This means the ECU isn’t recognising the transponder chip in the key. Causes include: chip failure inside the key head (more common with older keys that have been dropped or exposed to heat), key not properly programmed in the first place (common with cheap copy keys cut at hardware shops), or ECU fault. We diagnose which it is before attempting any programming – if the chip is dead, programming a new chip is the solution; if the ECU is at fault, that’s a different conversation.

Intelligent Key Intermittently Fails to Unlock the Car

The car sometimes unlocks when you approach, sometimes doesn’t. This is usually one of three things: fob battery dropping below threshold, interference from nearby electronic devices (parking structures with certain lighting systems can cause this), or a weak signal from one of the car’s antenna modules. We test fob output strength and check which antenna zone is weak before recommending anything.

Lost Key – No Working Key Remains

This requires the most work. Without any working key, we can’t use the standard “add key with existing key present” procedure. Instead, we retrieve the immobiliser security data directly from the BCM via EEPROM access or OBDII PIN extraction (method depends on generation), then programme a new key from scratch as the only authorised key in the system. The old lost key is automatically invalidated in this process because we’re overwriting the key list entirely.

How We Programme a Nissan Sentra Key – Step by Step

When our technician arrives at your location, the process follows a clear sequence regardless of which generation Sentra you have or what key situation you’re in.

Vehicle and Key System Verification

We start by reading the VIN and confirming the exact production year, trim level, and BCM configuration. Two B17 Sentras from different trim levels can have completely different key systems. We also check how many keys are currently registered in the system – this matters if you’re adding a spare versus replacing a lost key, because the approach differs. This takes about five minutes and prevents the wrong procedure being attempted.

Retrieve Security Data Where Needed

For “all keys lost” scenarios on B17 and B18 models, we need the BCM’s security PIN before programming can proceed. We retrieve this either via OBDII PIN calculation using the BCM’s unique identifier, or via direct EEPROM read of the BCM module. The method depends on the year. On older B16 models this step isn’t required – the system allows direct programming without a PIN.

Programme the Transponder

Using a CONSULT-compatible programmer connected to the OBD port under the dashboard, we enter the BCM’s key registration mode and register the new key’s transponder chip. The system writes the chip’s unique ID to the authorised key list. We then test that the engine starts with the new key before moving to the next step.

Sync the Remote Function

For integrated key fobs and Intelligent Keys, the remote (lock/unlock/panic) function is synced separately via the BCM’s remote learning mode. This is a quick process once the transponder is confirmed working. We test all buttons – lock, unlock, and where applicable boot release and alarm panic.

Full Function Test and Handover

Before we pack up, you test everything yourself: start the engine, lock and unlock all doors via the remote, check passive entry if your Sentra has it. If anything isn’t working correctly, we resolve it on the spot. We don’t consider the job done until you’ve confirmed it works to your satisfaction.

Dealer vs Locksmith for Nissan Sentra Key Programming – The Honest Comparison

A question worth addressing directly, because many Sentra owners consider both options before deciding.

What the Dealer Offers

Nissan dealers in Dubai (Al Nabooda, Arabian Automobiles) use genuine CONSULT III Plus equipment and official Nissan key blanks. Programming quality is consistent and the key is a genuine Nissan part. The downsides are well-documented: appointment required, sometimes several days’ wait, pricing significantly above market rate, and you need to get the car to the dealer yourself – which is a problem if you have no working key at all.

What We Offer

We use CONSULT-compatible professional equipment that runs the same programming protocols as the dealer tool. The key blanks we use are aftermarket but manufactured to OEM specifications – the transponder chips are genuine ID chips compatible with Nissan’s immobiliser, not generic copies. We come to your location anywhere in Dubai, work around your schedule, and typically cost 30 to 50 percent less than dealer pricing for the same result.

The one scenario where we’d always recommend the dealer first: if your car has been in an accident involving airbag deployment or electrical damage to the BCM, the immobiliser may need recalibration that requires official Nissan network access. We’ll tell you if that’s the case on inspection rather than attempt programming on a damaged system.

For a standard key programming job on a mechanically sound Sentra, we’re the faster and more cost-effective option with no meaningful difference in outcome.

Other Nissan and Automotive Key Services We Provide in Dubai

• Nissan Key Replacement Dubai – Lost your Sentra key entirely? We supply the blank and programme it on-site.
• Nissan Car Unlocking Dubai – Locked out of your Sentra? Non-destructive entry across all models.
• Nissan Ignition Repair Dubai – Ignition barrel faults, worn ignition switches, key stuck in ignition.
• Nissan Car Key Programming Dubai – Full key programming service for all Nissan models, not just the Sentra.
• Nissan Key Programmer Dubai – Specialist programming equipment and expertise for the full Nissan range.
• Nissan Car Key Service Dubai – Complete Nissan key services from cutting to programming to replacement.
• Nissan Car Key Programming – More information on our Nissan programming capabilities across models.
• Car Key Maker Dubai – On-site key cutting for any car model anywhere in Dubai.
• Car Key Programming Dubai – All brands and models – full automotive programming service.
• Automotive Locksmith Dubai – The full range of car locksmith services we offer across Dubai.
• 24-Hour Emergency Locksmith Dubai – Any hour, any day – including Sentra key emergencies.

Getting to You Quickly Across Dubai – How Our Fleet Makes That Possible

Key programming is time-sensitive in a way that other services aren’t. If you have no working key for your Sentra, you’re not driving. If you’re locked out in a car park, you’re waiting wherever you are. The practical value of a fast response isn’t just convenience – it’s measured in hours of your day that you either lose or don’t.

Pro Key Services runs a fleet of more than 60 service vehicles distributed across Dubai. Each van is stocked as a fully operational mobile workshop – CONSULT-compatible programming interface, Nissan-compatible key blanks for all Sentra generations, key cutting machine, and the tools for extracting broken keys or handling lockout situations on the same visit. When you call, the nearest available technician is dispatched immediately from wherever they are in the city.

The fleet positioning is deliberate. Vehicles are spread across the areas where Nissan Sentra owners actually live and park in Dubai – residential areas like Mirdif, Al Barsha, Al Qusais, Deira, Bur Dubai, and International City where Sentra density is highest, through to the newer villa communities and apartment clusters across JVC, Discovery Gardens, and Silicon Oasis. This isn’t about covering the whole city from one central point – it’s about being already close to where the need is most likely to be.

For most of Dubai, you’re looking at a technician at your car within 30 minutes of your call. For the areas listed above where our vehicle density is highest, it’s often faster. Same response time target at 11pm as it is at 11am. Same technicians, same equipment, same pricing.

Frequently Asked Questions – Nissan Sentra Key Programming Dubai

What years of Nissan Sentra do you programme keys for in Dubai?

All generations from 2010 to the current 2025 model – B16, B17, and B18 chassis. The key systems differ significantly between these generations, and we carry the correct equipment and blanks for each. If you tell us your year and trim when you call, we can confirm availability and give you a price before coming out.

Can you programme a Nissan Sentra key if I have no working key at all?

Yes, but the process is more involved. Without an existing working key, we can’t use the standard “add key” procedure. Instead, we retrieve the BCM’s security PIN via EEPROM read or OBDII calculation depending on your year, then programme a fresh key as the authorised unit. The lost key is effectively invalidated because we overwrite the key list. This takes longer than a standard add-key job – typically 45 to 60 minutes from arrival.

How long does key programming take for a Nissan Sentra?

Standard transponder programming on B16 and older B17 models: 20 to 30 minutes. Intelligent Key programming on later B17 and B18 models: 30 to 45 minutes. All-keys-lost scenarios: 45 to 60 minutes. We test all functions before leaving.

Why doesn’t my Sentra key fob work after I replaced the battery?

A new battery doesn’t automatically restore sync if the fob lost it during the battery swap. The rolling code counter in the fob may have reset. On some Sentra variants this can be fixed with a door-lock cycling procedure you can do yourself – we’ll walk you through it on the phone first. If that doesn’t work, a BCM re-sync via CONSULT resolves it, and we can do that on-site.

How much does Nissan Sentra key programming cost in Dubai?

Transponder key programming for B16 models starts from around AED 150. Intelligent Key programming for B17 and B18 models is priced higher given the complexity and equipment. We quote before starting and the price doesn’t change after the job. Call us with your year and model for a specific number.

Can I programme a Nissan Sentra key myself?

The remote fob function on some older Sentras can be self-synced using a door lock cycling sequence. But the transponder chip – which controls whether the engine actually starts – requires a CONSULT-compatible programmer. Without it, you can have a key that unlocks the doors but the car won’t start. Attempting to bypass the immobiliser without the right equipment risks locking the system, which requires a specialist to reset.

What’s the difference between a transponder key and an Intelligent Key on the Sentra?

A transponder key is a physical blade with a chip in the head – you insert and turn it to start the car. The chip communicates with the immobiliser only when inserted. An Intelligent Key is a proximity fob – the car detects it passively within a radius when you approach and allows push-button start. Both contain a transponder chip, but the Intelligent Key also has passive entry functionality that operates continuously. Programming requirements are completely different for each.

My Sentra starts with the key but the remote buttons don’t work – what’s wrong?

The transponder (start function) and the remote (lock/unlock) are separate systems that happen to share the same physical unit. If the car starts but the buttons don’t respond, the transponder is fine but the remote has lost sync or has a hardware fault. We diagnose which it is – sync loss is a quick fix, a failed button requires a fob replacement. Either way, the fix doesn’t require key replacement from scratch.
